Quick Details

  • Condition: New
  • Type: Tile Forming Machine
  • Tile Type: Colored Glaze Steel
  • Use: Wall
  • Production Capacity: 8-10m/min
  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: Greatcity
  • Model Number: Roof Tile Rolling Machine (cold purling roll forming machine)
  • Power(W): 3+3kw
  • Voltage: 380V 50Hz 3phases
  • Dimension(L*W*H): 6200mm*1300mm*1000mm
  • Weight: 2.5T
  • Certification: CE ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: cold purling roll forming machine
  • Raw material: PPGI
  • Control system: PLC(imported Brand)
  • Color: Custimized
  • Material: Glavanized Sheet
  • Roller material: 45roll forming machinery Steel Plated
  • Dimensions: Standard
  • Usage: Wall Panel
  • Working principle: Electric
  • Company nature: Factory

Packaging & Delivery

Packaging Details Export standard seaworthy packing : strong wooden case packing for cold purling roll forming machine
Delivery Time Within 30 days after receiving the deposit.

New type auto cold purling roll forming machine

Product Description

Main accessories of cold purling roll forming machine :



rolling machine can produce beautiful apprearance and strong panels which are extensively used in wall&roof construction or outdoor decoration.
We design and manufacture the machines according to clients' requirements. We are specializing in offering high performance machines and first class service to our customers with competitive price.

Our rolling machine are featured of high efficiency, high flexibility and low production cost.

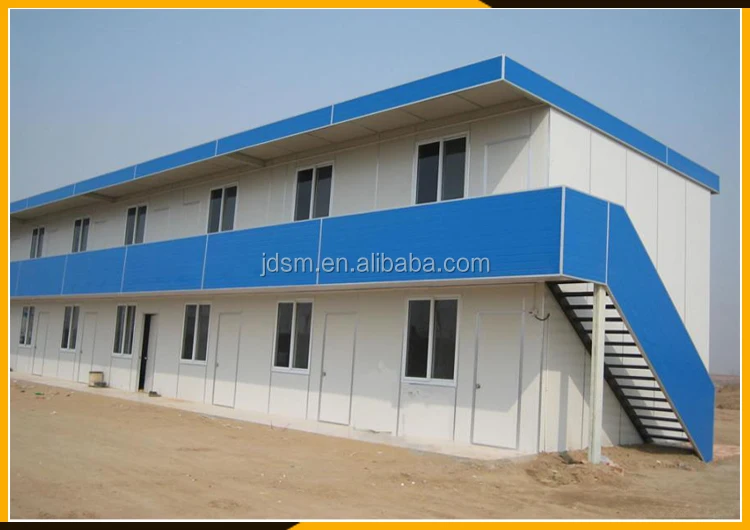

The products are widely used in building the steel-structure large-scale warehouse, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
This type of roof panel forming machine features high speed, high production, good performance, low labor and is economical. It is the best choice for producing metal sheet cold roll form products.







cold purling roll forming machine spectifcation:

1, equipment installation Dimensions: 6200mm × 1300mm × 1000mm
2, the total weight of equipment: about 3.5T
3, the host power: 3kw
4, hydraulic shear power: 3kw
5, hydraulic station pressure: 10-12mpa
6, depth: 840 type 23mm; 850 type 8mm pitch: 840 type 210mm; 850 type 130mm
7, working speed: 0-8m / min
8, 840 forming row number 11 row roll forming
    850 forming row 9 row roll forming
9, the shaft with 45 cold purling roll forming machine steel, after processing shaft size diameter 65mm, mold wheel with 45 cold purling roll forming machine steel processing, the surface hardened plating
10, transmission with 6 points sprocket, chain drive, 4 cold purling roll forming machine 3Kw planetary cycloid reducer, smooth movement, no noise
11, the plate connection using cast steel pull plate, to ensure that the machine in the roll plate does not occur when the variant
Transmission bearings with high-quality 210 high-speed double sealed bearings, maintenance-free, to extend the machine operating life
12, computer control system using high intelligence industrial electronic programmer Taiwan Delta PLC control system, simple operation, accurate accuracy, stable performance, the length of the accuracy of less than 2mm, plate speed 8-10 m / min
13, raw material support frame using artificial adjustment, easy to operate
14, it is used for 0.27mm-0.8mm color coated or galvanized sheet





 Machines can be customized



cold purling roll forming machine feature: Can be packed and worked in one 20'GP or  40'GP shipping container, and , so can it saves much time, room and cost. Also can design and make the machine according to your demand.



Our advantage:

1. High quality Raw materials, Parts, PLC computer controlling system for our machines.
2. Groups of professional engineers, designers and oversea sales for roll forming machines.
3. Rich experiences of design and manufacture, and export for roll forming machines.
4. Customize machines as per your requests.
5. Punctual delivery time, Good technology support and After-sale service, Long quality guarantee.



Packaging & Shipping

cold purling roll forming machine packaging & shipping

Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
30 WORKING DAYS AFTER RECEIVED THE DEPOSIT



Our Services

1.We will respond to your inquiry as soon as possible and e-mail

2.All thesluice gate screw hoist  is 1 year guarantee .If our machine have quality problem in you country because of our real mistake,our company accept the replacement any time.

3.I will send you instructions and vedio of machine to help easy to operate.

Company Information

FAQ

Q:why choose our product?

A: Our products have good quality, durable, domestic and foreign customers trust and reputation Our products have good quality, durable, domestic and foreign customers trust and reputation

Q:how to choose a suitable product?

A:Please tell our professor service team about youyr detailed requirement and using effect,we will recommend you our best suitable product

Q:what should I tell you anything about product?

A:In order to provide you with the most suiltable for your product ,please provide your requirments to our professional service team
